Technical parameters required for slewing bearing selection as below:
1).Slewing bearing load (Includes axial load, radial load and tilting moment)
2). Percentage of each load and its occupation time
3). Speed or number of revolutions of the slewing bearing under each load
4).Circumferential force acting on the gear
5).Dimensions of the slewing bearing
6). Other operating conditions
The material, compressive property, abrasive resistance and hardness of balls will affect the load condition and service life of slewing bearing. Longwei slewing bearing Co., Ltd purchase balls from suppliers with high quality, and we will conduct test for the compressive property, abrasive resistance and hardness to eurens the quality of balls will meet the requirement.

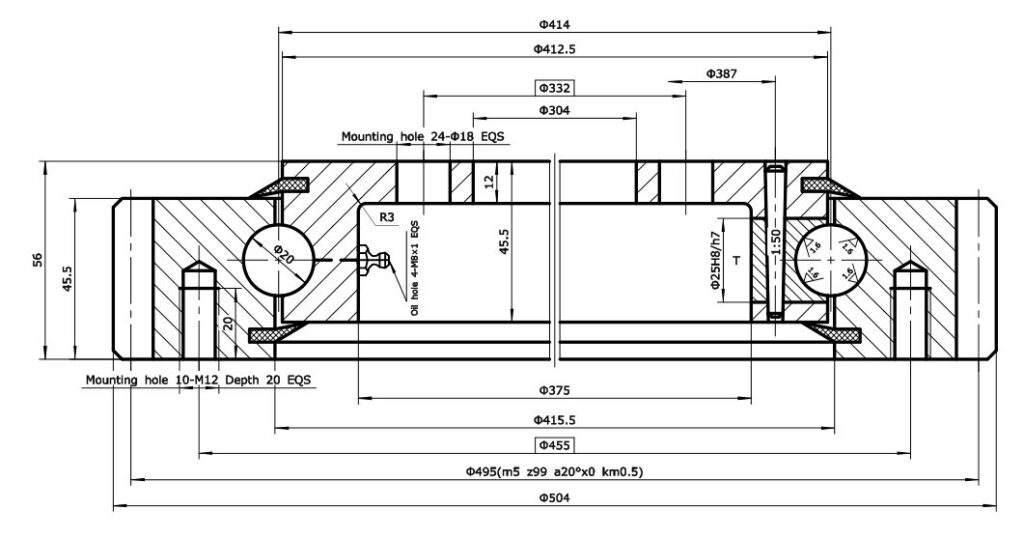

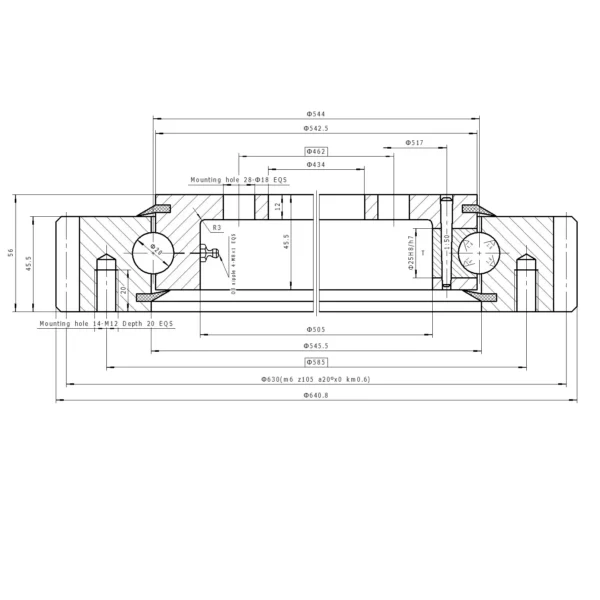

Internal tooth slewing bearing single row ball 4-point contact 013 series
The inner and outer gears of the slewing ring are directly toothed on the inner or outer ring, and are processed by a gear hobbing machine or a gear shaper. If the working environment is loaded, it needs to be quenched. The internal gear slewing ring: the overall appearance is relatively neat, There is no need to install a safety cover at the meshing part of the gear and the slewing ring. The gear has better dust resistance, longer retention time by adding lubricant, and lower transmission contact stress of internal gear meshing, less wear and longer service life.
If it is an internal gear type, the outer gear ring should be fixed with bolts of appropriate strength grade. The bolts and nuts should meet the standards of GB3098.1 and GB3098.2. Then the pinion gears mesh with the inner teeth to drive the inner ring to rotate to achieve the purpose of transmission.
One of the most common applications is excavators. Generally, excavators need to use internal tooth slewing bearings, and the internal teeth need to be quenched to increase the hardness of the teeth.
SHORT DESCRIPTION:
- Factory supply Inner gear slew bearing
2.Dust resistance,longer retention time
- Very competitive price for you to seize your customer!
FAQ
1: How to order?
Please refer to the help under the single payment.
2.What are the shipping methods?
Ocean shipment to the port close to your city; Air shipment to the airport close to your company; Door to door service by international express.
3.When can I get the price?
We usually quote within 12 hours after we get your inquiry. If urgent to get the price, please call us or tell us by email , we will regard your inquiry priority.
4.You are a trader or a manufacturer?
We are an industry and trade integration business, our factory located on Xuzhou City.
5.How about the payment terms?
We usually accept T/T or L/Cat sight . other terms also could be negotiated.
6.What is your minimum order?
It depends on what you are buying. Normally, our minimum order is 1pcs.
7.What is your delivery time?
If there are any parts in stock , our delivery time is only 3-7 days. If our standard model,the delivery time is around 25 days,if non-standard model,the delivery time is 38~45 days.
