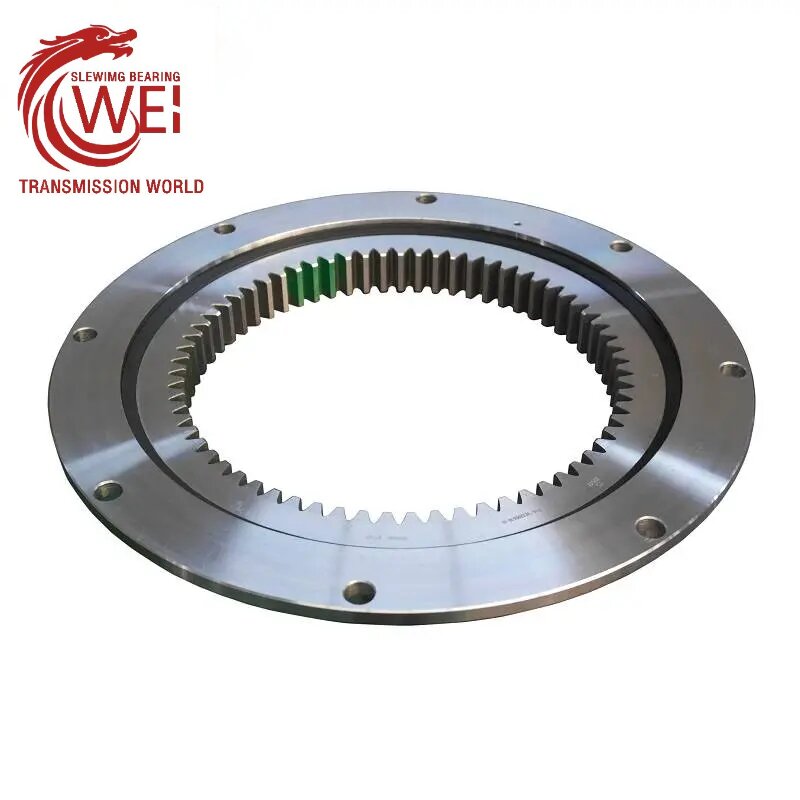

232 series Flange slewing bearing with inner gear mark the highest point of tooth jump

slewing bearings in the 232 standard series have a row of four-point ball bearings with spacer nylon.
These products are forged rings, processed into a structure, with an inner, square section, rigid gear ring and an outer flange ring. slewing bearings are provided with pre-lubricated grease in the 232 standard series.

The 232 standard series Longwei rotary bearings have a good balance between performance and stiffness, with only one outer flange ring. The real advantage of the structure is that it is easy to assemble, and the double seal means it can even be installed outdoors or in a dusty environment. Longwei 232 standard series slewbacks can also rotate at high speeds (30 RPM) under low load


The 232 standard series Longwei  slewing supports are used in a variety of applications, such as:
* turntable;
* Welding table;
* Process automation industry;
* Packaging industry;
* Light crane;
* Light self-propelled crane;
* Blender;
* Light reel;
* Coiler; *etc.

 Description of 232 series

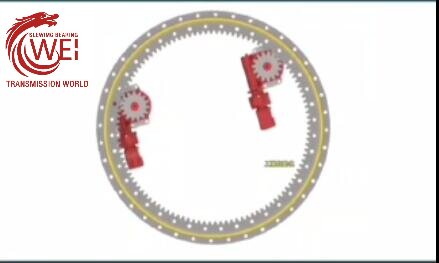

232 series Flange Slewing bearings comprise an inner ring and an outer flange ring, inner ring incorporates a gear. Together with attachment holes in both rings, they enable an optimized power transmission with a simple and quick connection between adjacent machine components. The bearing raceways, in conjunction with the rolling elements and cages or spacers, are designed to accommodate loads acting singly or in combination, and in any direction.



  1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.
  2. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.
  3. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.
  4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.
  5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.


1: How to order?

Please refer to the help under the single payment.
2.What are the shipping methods?
Ocean shipment to the port close to your city; Air shipment to the airport close to your company; Door to door service by international express.
3.When can I get the price?
We usually quote within 12 hours after we get your inquiry. If urgent to get the price, please call us or tell us by email , we will regard your inquiry priority.
4.You are a trader or a manufacturer?

We are an industry and trade integration business, our factory located on Xuzhou City.
5.How about the payment terms?
We usually accept T/T or L/Cat sight . other terms also could be negotiated.
6.What is your minimum order?

It depends on what you are buying. Normally, our minimum order is 1pcs.
7.What is your delivery time?
If there are any parts in stock , our delivery time is only 3-7 days. If our standard model,the delivery time is around 25 days,if non-standard model,the delivery time is 38~45 days.
