232.20.0544F2 light type internal gear Slewing Bearing for big Pendulum

The happiest part of childhood was going to the amusement park. Every amusement park has big rides, and I think the most exciting one is the pendulum.

There are many sources of power for the big pendulum, including electrical trends, wind-up gears, and the gravity of the hammer moving back and forth between points. Super big pendulum, also known as big pendulum, meteor hammer, is becoming the international popular new amusement equipment, is also one of the most popular amusement park projects.

products discription
Model Number:232.20.0544Brand namelongwei
Production ExperienceSince 2004Applicable Industries:Amusement equipment
Rolling-Element NumberSingle-RowGear Options:Internal gear
Material50Mn/42CrMo/ CustomizedSeals Type:as requirement
Bearing Type:single row ball slewing beringCERTIFICATE:ISO9001:2008/SGS
Bore Diameter445 mmOutside Diameter648mm
Roller TypeDeep Groove RacewayRACEWAY hardness:55HRC -62HRC
Products Nameflanged type slewing bearing externalgearService:OEM Service.Design Service
Net Weight :36.7kgsMaterial of Rolling element:GCR15
Warranty Period1 yearTestingIn house or third party
OriginCHINASizeStandard OR Customized
Height56MMH.S. Code848210900
Packaging Details 1. Industrial Neutral Packing 2. Package as your requirements.3. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton 4.Large size Bearings:Plastic film+pergamyn paper+Roll tape+Wooden BoxPrecisionP0 P6 P5 P4 P2
The working principle of the big pendulum is: the main part is driven by a motor to push the slewing bearing, so that the motor can flexibly track the swing of the pendulum, to achieve non-uniform rotation.

As a large entertainment facilities of stimulation type, the safety needs Pay more attention:

  1. The amusement equipment business units or their authorized maintenance unit must meet the characteristic of each amusement equipment by making monthly inspection, daily inspection table,monthly inspection shall inspect all kinds of important parts, weld and safety protection device, daily inspection should be key point to make sure whether the equipment operation is normal, seat belts, safety pressure bar, locking device, reliable, such as hanging device,insurance device or the electrical control is normal and reliable. Inspection records must be recorded for future check.
  2. Amusement equipment operators must carry out trial operation and routine safety inspection before daily operation, check and confirm safety devices, and make corresponding records. If any abnormality is found after inspection, it must be handled in time. It is forbidden to run the equipment with faults.

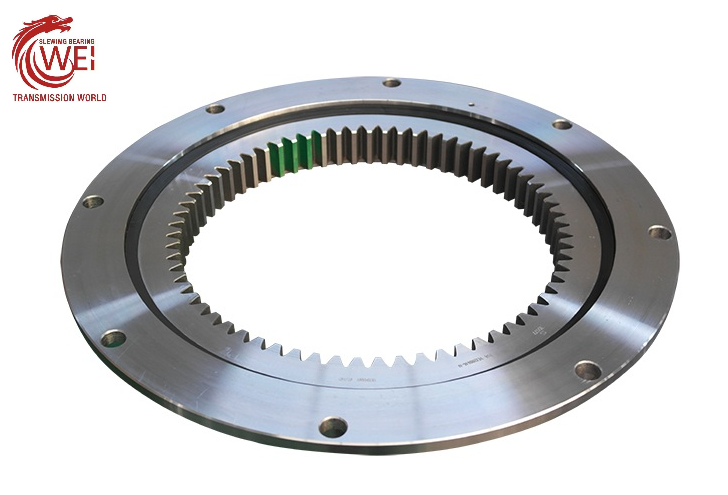

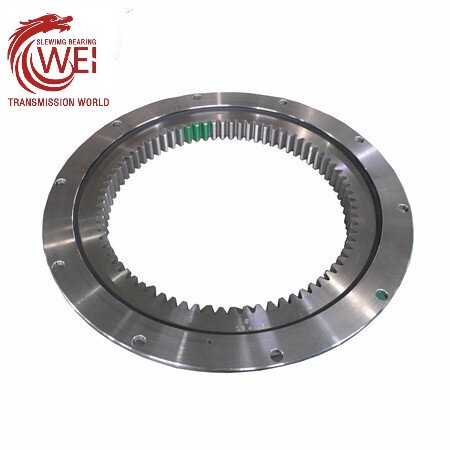

232.20.0544F2 light type internal gear Slewing Bearing
232.20.0544F2 light type internal gear Slewing Bearing back side
  1. Light type is also named Thin section Slewing bearing
  2. It has same structure with Single row Ball slewing bearing
  3. Light type Slewing bearing have light weight, rotate flexibly
  4. Thin section slewing bearing is widely used in the food machinery, canning machinery and environmental machinery.
  5. Our Warranty is 12 Months

Light Type slewing ring, slewing ring, compact structure, not easy to deform, selected materials, high manufacturing accuracy, small assembly clearance,

durable, light slewing ring, slewing ring, various specifications, and wide application for the food machinery, canning machinery and environgmental machinery.

Our company has an annual production capacity of 10,000 sets of slewing bearings with a track center distance of 200-4000mm, and provides non-standardized

customized services according to customer requirements.

We can supply the certificate with ISO9001:2015, CCS, SGS, we also accept the thirty party inspection.

For the new products, we used APQP, FEMA system to ensure the qualtiy.
