Precise dimension measurement is one of the most critical quality‑control steps for large‑size internal‑gear slewing bearings. Even tiny deviations on inner‑diameter and gear‑tooth parameters will lead to poor meshing, abnormal noise, shortened service life once the slewing bearing is fitted onto tower cranes, excavators, wind‑energy equipment and heavy‑duty machinery.</p>
<p>At our Longwei Transmission factory, every large internal‑tooth slewing bearing undergoes strict manual diameter inspection after machining. The whole measurement process is shown below.</p>
<h2>1. Full‑Process QC for Large Internal‑Gear Slewing Bearing Dimension Check</h2>
<h3>1.1 Pre‑Measurement Preparation</h3>
<p>After forging, heat treatment, gear hobbing and finish‑CNC‑machining of the internal‑gear slewing ring, our quality‑control technician calibrates the customized large‑size vernier caliper first. Tool calibration eliminates measuring errors and guarantees accurate raw‑data readings.</p>
<h3>1.2 Multi‑Point Inner‑Diameter & Roundness Measurement</h3>

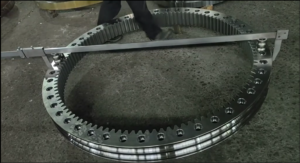

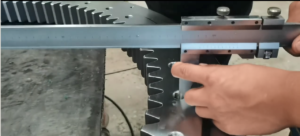

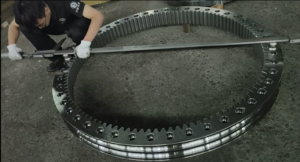

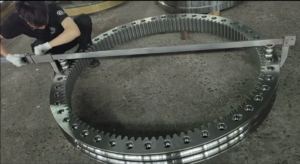

<p>The technician positions the two measuring probes of the caliper on the inner‑tooth circle of the slewing bearing. We take multiple‑point readings around the full‑circle inner gear, not just one‑spot measurement. This method checks both the actual inner diameter value and the circular roundness of the gear ring.</p>
<h3>1.3 Data Recording & Tolerance Comparison</h3>
<p>All measured data is logged in our quality‑inspection form. Our QC team cross‑checks the real‑world dimensions against the tolerance requirements from the client’s technical drawings. If any index goes beyond the allowed range, the slewing bearing will be re‑machined until it fully meets the technical standard before delivery.</p>
<h2>2. Why Strict Inner‑Diameter Inspection Is Indispensable for Slewing‑Bearing Performance</h2>
<h3>2.1 Ensures Smooth Gear‑Meshing & Reduces Operational Noise</h3>
<p>Accurate inner‑diameter tolerance enables perfect meshing between the internal gear and drive pinion. It avoids irregular gear friction, grinding noise and tooth‑abrasion issues during long‑time rotating work.</p>

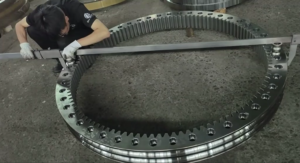

Precision‑Diameter-Inspection-of-Internal‑Gear-Slewing-Bearings5
<h3>2.2 Guarantees Stable Assembly on Heavy‑Duty Equipment</h3>
<p>Precise inner‑gear‑ring dimensions achieve seamless fitting with drive assemblies. It prevents wobbling, loose installation or position deviation when the slewing ring is mounted on tower cranes, aerial work platforms, harbour machinery and mining‑related equipment.</p>
<h3>2.3 Extend Overall Service Life of Slewing Bearings</h3>
<p>Tight dimension control evens out load distribution across gear teeth. Uneven wear is greatly reduced, which effectively prolongs the service cycle of our heavy‑duty slewing‑bearing products for end‑users.</p>
Precision‑Diameter-Inspection-of-Internal‑Gear-Slewing-Bearings5
<h2>3. Our Custom‑Manufacturing Capacity for Internal‑Gear Slewing Bearings</h2>
<p>Longwei Transmission is a professional manufacturer of large‑size custom‑built internal‑gear slewing bearings. We follow ISO‑9001 quality standards strictly for the whole production chain: raw‑material forging, heat‑treatment, CNC gear‑machining, dimension inspection and final‑packaging.</p>
<p>We supply OEM and replacement‑type slewing rings for construction‑machinery, wind‑power facilities, marine‑equipment and global infrastructure‑engineering projects. All products can be customized fully in line with your drawings and tolerance demands.</p>
<h2>4. Get Your Custom Slewing‑Bearing Quotation</h2>
<p>If you need tailor‑made internal‑gear slewing bearings with strict dimensional‑tolerance requirements, send us your technical drawings. We will provide a competitive quotation within 24‑48 hours.</p>
